How tall can a retaining wall be without a permit?
Four feet is the usual answer, and on its own it is not good enough. The limit is normally measured from the bottom of the footing, not from the ground — and on a standard block wall that is about 14 inches you cannot see. A wall standing three feet above grade can already be over the line.
The short answer
Most jurisdictions require a building permit once a retaining wall passes four feet, and require an engineered design at the same point. Below that, a straightforward gravity wall is usually yours to build.
That is the sentence every article on this subject stops at. It is also the sentence that gets people cited, because it leaves out the two things that actually decide the answer: where the four feet is measured from, and what is sitting above the wall.
Where the height is measured — the whole question
Portland's permitting page is unusually clear about this. A building permit is required when a wall:
“is more than four (4) feet high, measured from the bottom of the footing to the top of the wall; OR, supports a surcharge.” — City of Portland
Read that again. From the bottom of the footing. Not from the ground you are standing on.

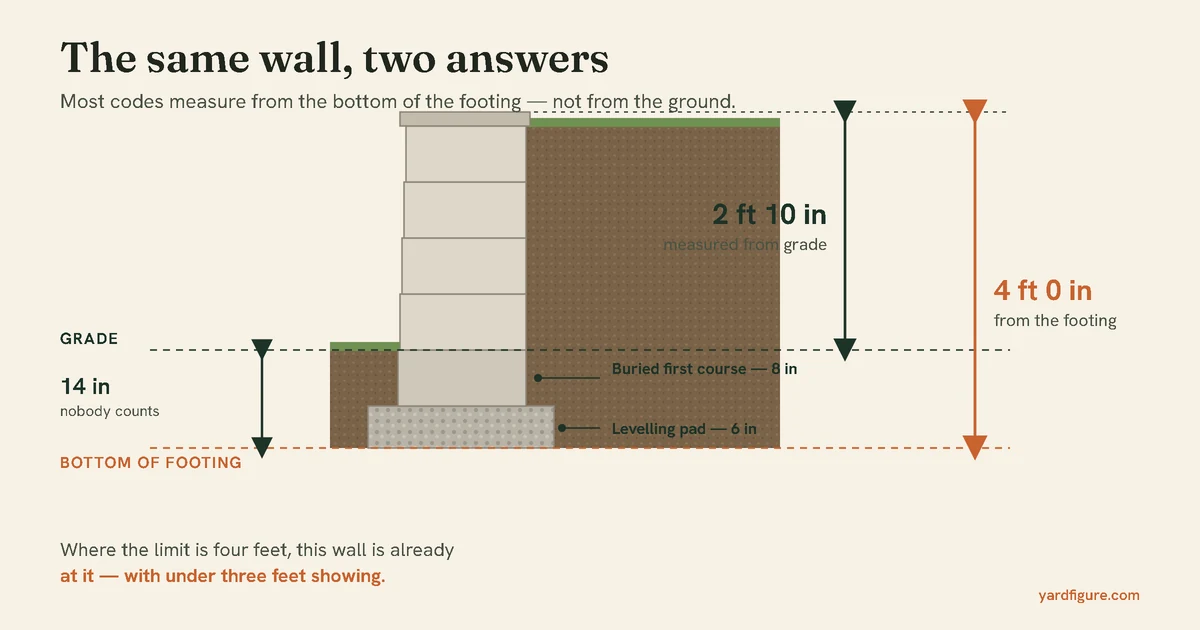

A segmental block wall does not start at grade. Underneath the part you can see there is a buried first course, and underneath that a compacted levelling pad. On a standard build that is:
| Layer | Typical depth |
|---|---|
| Levelling pad (compacted gravel) | 6 in |
| Buried first course (8-inch block) | 8 in |
| Total below grade | 14 in |
Fourteen inches that nobody sees, and that most people never add in. Which produces this:
| Height above ground | Height from the bottom of the footing | Over 4 ft? |
|---|---|---|
| 2 ft 0 in | 3 ft 2 in | No |
| 2 ft 10 in | 4 ft 0 in | At the line |
| 3 ft 0 in | 4 ft 2 in | Yes |
| 3 ft 6 in | 4 ft 8 in | Yes |
| 4 ft 0 in | 5 ft 2 in | Yes |
A wall standing three feet above the ground — which everyone would call comfortably under a four-foot limit — is over it by Portland's measurement. The threshold is effectively 2 ft 10 in of visible wall, not four feet.
This is the same buried course that our retaining wall calculator counts and that most block calculators leave out. It changes how many blocks you buy, and it can change whether you need a permit.
And plenty of cities never say
Portland spells the measurement out. Philadelphia and Rosemount, Minnesota both give a number and never define the measurement point at all. Philadelphia's page simply directs questions to 311.
So for most addresses you genuinely cannot work this out from the published page. You have to ask.
How much the limit itself varies
Four feet is common, not universal. These are the published thresholds from three city pages:
| Jurisdiction | Permit required at | Measured from |
|---|---|---|
| Philadelphia, PA | 2 ft | Not stated |
| Portland, OR | Over 4 ft | Bottom of the footing |
| Rosemount, MN | 4 ft or greater | Not stated |
Philadelphia's limit is half of the usual one. A two-foot garden wall — three courses of block, the kind of thing built on a weekend without a second thought — needs a permit there.
Three cities, three different answers. That is the whole lesson: the number you read in an article is not the number that applies to your property.
A surcharge beats height, at any height
Portland's rule has a second half that has nothing to do with how tall the wall is: a permit is required if the wall supports a surcharge, which the city defines as a load beyond the normal weight of the level earth the wall holds back.
In practice that means anything sitting on the ground above the wall:
- A driveway or parking area
- A building, shed, deck footing or pool
- Ground that slopes upward behind the wall rather than running level
- Another wall above it
A two-foot wall holding back a driveway is carrying far more than a two-foot wall holding back a flat lawn, and the rules recognise that. Height alone does not describe the job.
Portland also notes that complex sites, or anywhere slope stabilisation is involved, may need a separate Site Development permit on top of the building permit.
What “needs a permit” actually means
It is rarely just paperwork. Past the threshold you are normally into engineered design: a plan prepared and stamped by a licensed engineer, submitted for review, and inspected during construction.
Rosemount states it directly — engineering is required on walls greater than four feet — but it also publishes an exception worth knowing:
“An engineered product installed as per the manufacturer's installation instructions does not require additional engineering.” — City of Rosemount, Minnesota
That is a real route. Block manufacturers publish engineered systems with tested installation specifications, and building to those instructions exactly can satisfy the requirement without a separate engineer. It also means the manufacturer's spacing, geogrid and backfill specifications become binding rather than advisory — you cannot follow most of the instructions and claim the exception.
Whether your jurisdiction offers the same exception is, again, a local question.
Tiering is not a loophole
The obvious workaround — build two three-foot walls instead of one six-foot wall — does not work the way people hope. Two walls set close together behave structurally like one taller wall, because the upper wall loads the lower one.
They only act independently when separated by a generous bench, and how generous that bench has to be is itself an engineering calculation. If the plan is tiering specifically to stay under a threshold, that is the point to call someone.
Getting the answer for your own address
Call your city or county building department. It is free and it takes two minutes. Ask these:
- At what height does a retaining wall need a permit here?
- Is that measured from grade, or from the bottom of the footing? — the question almost nobody asks, and the one that moves the answer by over a foot
- Does a driveway / slope / structure above the wall change it?
- Does an engineered manufacturer system avoid separate engineering?
Ask before you buy materials, not after. Post length, block count and base depth all follow from the answer.
Common mistakes
- Measuring from the ground. On a normal build you are understating the wall by about 14 inches. Three feet of visible wall is over four feet from the footing.
- Assuming four feet applies everywhere. Philadelphia's threshold is two.
- Forgetting the surcharge. A driveway above the wall can require a permit at any height.
- Treating a slope behind the wall as “level ground”. It is a surcharge.
- Tiering to dodge the limit. Two close walls are one wall structurally.
- Reading an article instead of calling. This one included — these are three cities out of thousands.
Conclusion
Four feet is the usual answer and it is not good enough on its own. Measured from the bottom of the footing, the practical limit on a standard block wall is closer to 2 ft 10 in of visible wall. Your city may set it lower still, and anything loading the ground above the wall overrides the height rule entirely.
Once you know what you are allowed to build, our guide to building a retaining wall covers the base, drainage and backfill, and the retaining wall calculator turns your dimensions into blocks, caps, levelling pad gravel and drainage stone — counting the buried course that this whole page turns on.
Frequently asked questions
How tall can a retaining wall be without a permit?
Usually up to four feet, but measured from the bottom of the footing rather than from the ground. On a standard block wall with a 6-inch levelling pad and an 8-inch buried course, that leaves about 2 ft 10 in of visible wall. Some cities set the threshold lower — Philadelphia requires a permit at two feet — so confirm with your building department.
Is retaining wall height measured from the ground or the footing?
It depends on the jurisdiction, and this is the single most important thing to confirm. Portland measures from the bottom of the footing to the top of the wall. Philadelphia and Rosemount, Minnesota publish a height threshold but do not state the measurement point at all. The difference is roughly 14 inches on a normal build, which is enough to move a wall from one side of the limit to the other.
Do I need a permit for a 3-foot retaining wall?
Possibly yes, even where the limit is four feet. A wall standing three feet above grade measures about 4 ft 2 in from the bottom of the footing once the buried course and levelling pad are counted, which is over the line in a jurisdiction that measures that way. Where the limit is two feet, a three-foot wall certainly needs one.
What is a surcharge on a retaining wall?
Any load on the ground above the wall beyond the weight of level earth — a driveway, a parking area, a building, a pool, another wall, or ground that slopes upward behind it. Portland requires a permit for a wall supporting a surcharge regardless of its height, because the wall is carrying far more than its height suggests.
Can I avoid hiring an engineer?
Sometimes. Rosemount, Minnesota states that an engineered product installed according to the manufacturer's installation instructions does not require additional engineering. Where that applies, building strictly to a manufacturer's tested system can satisfy the requirement. It also makes their specifications binding rather than advisory. Whether your jurisdiction offers the same exception is a local question.
Can I build two short walls instead of one tall one?
Not as a way around the rules. Two walls set close together behave like one taller wall, because the upper wall loads the lower one. They act independently only when separated by a generous bench, and that separation distance is itself an engineering calculation.
What happens if I build without a permit?
That depends on the jurisdiction, but the usual consequences are a stop-work order, a retrospective permit application with fees, and in some cases being required to remove or rebuild the wall. It can also surface during a property sale, when unpermitted structures have to be disclosed.
Does the permit threshold apply to garden and landscape walls too?
If the wall retains earth, yes — the rules are about what the wall holds back, not what it is called. A low decorative wall that holds no soil behind it is a different thing from a two-course garden wall cut into a slope. Where Philadelphia's two-foot threshold applies, quite modest garden walls are included.
Helpful resources
These are the primary sources for the figures above. All three are official city pages, and all three were read in full rather than summarised from secondary sources — which matters here, because most writing on this subject repeats “four feet” without checking where it is measured from.
- Retaining Wall Source: City of Portland, Oregon. The four-foot threshold, the “bottom of the footing” measurement, the surcharge rule, and when a Site Development permit is also needed.
- Get a Retaining Wall Permit Source: City of Philadelphia. The two-foot threshold, published without a stated measurement point.
- Retaining Walls Source: City of Rosemount, Minnesota. The four-foot threshold, the engineering requirement above it, and the manufacturer-engineered product exception.
Three cities is not a national picture. They are here to show how far the answers spread, not to give you yours.
